1988 10 Meter-mid cabin Rudder Bushings

This forum is for comments and the exchange of information relating to Trojan Boats and boating. Please do not post used parts or boats For Sale in this area. For general, non-boating topics please use our "General Discussions" section.

Note: Negative or inflammatory postings will not be tolerated.

Moderators: BeaconMarineBob, Moderator, BeaconMarineDon

Post Reply
User avatar
Scott67
Registered user
Posts: 60
Joined: Wed Nov 03, 2021 8:44 am
Location: Jacksonville, FL

1988 10 Meter-mid cabin Rudder Bushings

Post by Scott67 »

Just finished a small project and wanted to share my idea and results. Like a lot of these older girls, the original upper rudder bushings wear out and the tiller arms start to wear into the fiberglass rudder pockets. I ordered a couple replacement bearings from Bob at the Beacon, but due to the severe wear and the fact that I would have to probably "double-up" the bearings, I decided to come up with a similar repair plan that would give me piece of mind and some longevity. I decided to add a floating washer/bearing in between the tiller arm and the lower bearing flange just for added friction surface.

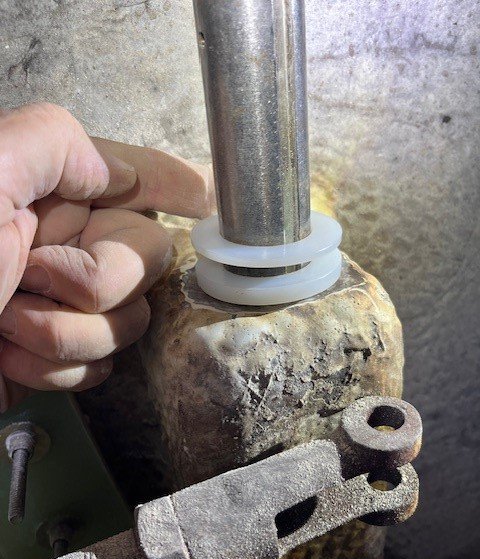

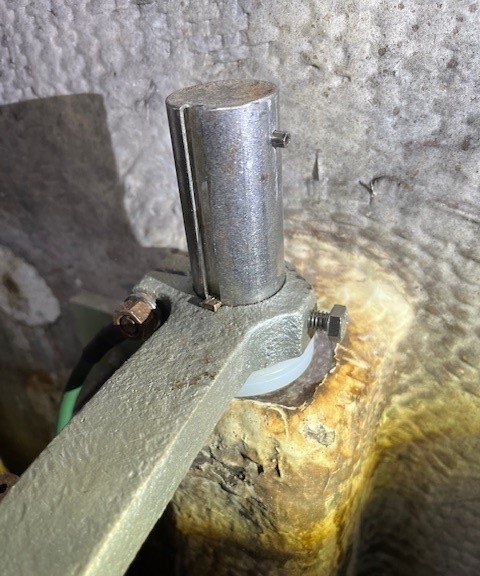

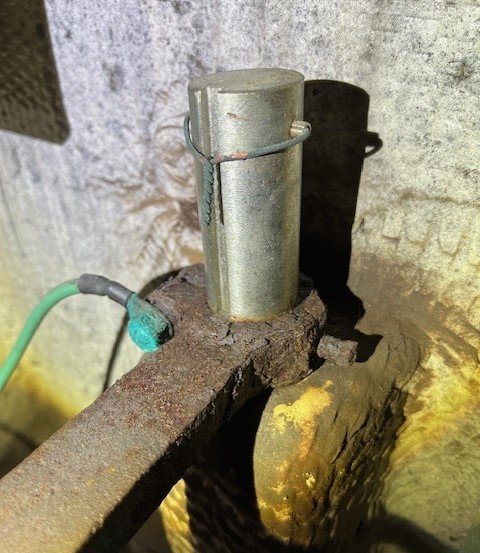

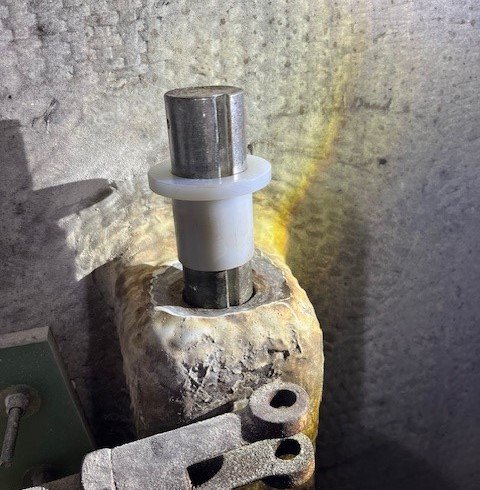

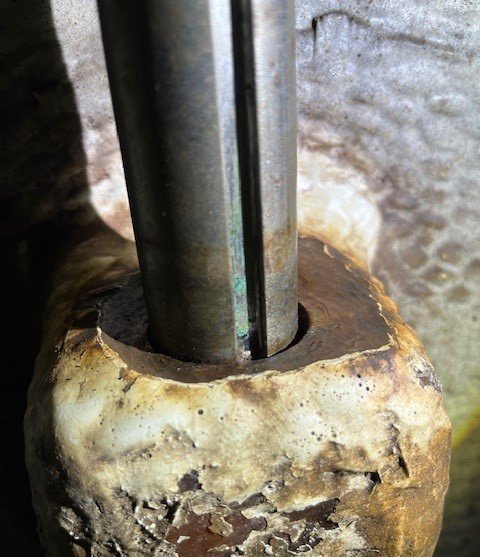

So, with the help of a local machinist friend and a stick of 6/6 Nylon, I went to work measuring and came up with the pictured before and after:
Rudder 1.jpg
Rudder 1.jpg (77.89 KiB) Viewed 3818 times
Rudder 2.jpg
Rudder 2.jpg (70.55 KiB) Viewed 3818 times
Rudder 3.jpg
Rudder 3.jpg (68.61 KiB) Viewed 3818 times
Rudder 4.jpg
Rudder 4.jpg (75.82 KiB) Viewed 3818 times
Rudder 5.jpg
Rudder 5.jpg (77.28 KiB) Viewed 3818 times
"Speakeasy"
1988 Intl 10 Meter Mid-Cabin Exp
Model 340
Twin 454 (350hp) Crusaders
1.5:1 Gearboxes
Jacksonville, FL
User avatar
prowlersfish
2024 Gold Support
2024 Gold Support
Posts: 12707
Joined: Sat Nov 05, 2005 6:56 pm
Location: Lower Chesapeake Bay ,Va

Re: 1988 10 Meter-mid cabin Rudder Bushings

Post by prowlersfish »

Nice work and good info.
