NORCOLD AC/DC 12 VOLT WIRING

MUSICMAN7775 · Post by **MUSICMAN7775** » Tue Aug 28, 2012 12:14 pm

I HAVE A NORCOLD DE 400C REFRIGERATOR ON MY 1975 F-26.
THE WIRES WERE NOT LABELED OR CONNECTED WHEN I BOUGHT THE OLD BOAT.
I AM UNABLE TO FIND OUT WHICH WIRE OF THE 12 VOLTS SIDE IS POSITIVE, WHITE OR BLACK.
DOES ANYONE KNOW WHICH COLOR WIRE BLACK OR WHITE GOES TO THE POSITIVE SIDE OF THE BATTERY?
THANKS DON

prowlersfish · Post by **prowlersfish** » Tue Aug 28, 2012 5:45 pm

Don The info I have says red to positive and black to negative on the norcold . not showing a white wire . here is some info

You are talking about the wires from the norcold not the boat it self correct ?

http://bryantrv.com/docs2/docs/ncolddedc.pdf

captainmaniac · Post by **captainmaniac** » Tue Aug 28, 2012 7:02 pm

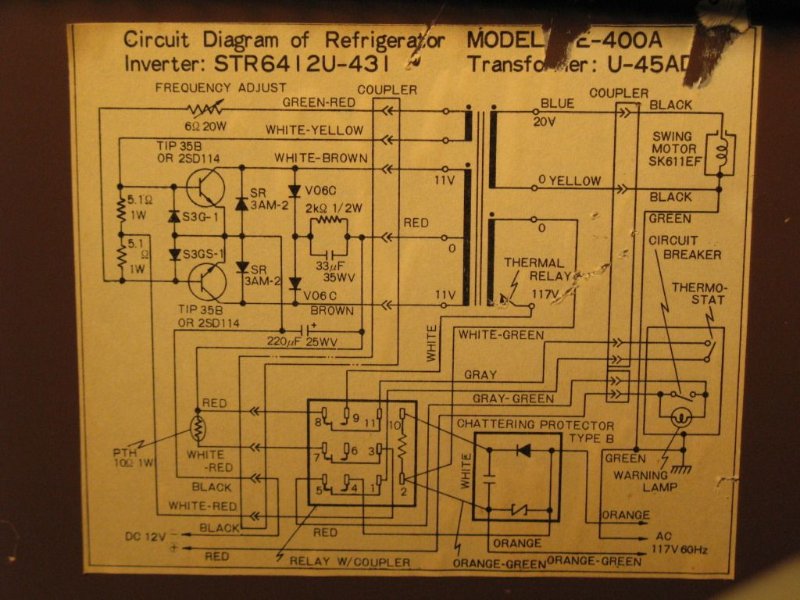

Here is the wiring diagram from a '79 DE-400A. Black to negative, red to positive. But if you have white (?), maybe you can follow the wires and compare to the diagram to figure out which is which.

Sorry the pic is so big, but at least more readable this way.

I may have more info somewhere else around here (on paper) and will pass along anything useful I find. My fridge crapped out a couple of year back and I ended up scabbing the electrical guts of a different unit into mine. If I remember right, the 'donor' fridge had slightly different wiring than mine.

: 9b46d16e.jpg (100.72 KiB) Viewed 1996 times

larryeddington · Post by **larryeddington** » Tue Aug 28, 2012 7:18 pm

++++ on web and diagram provided

captainmaniac · Post by **captainmaniac** » Tue Aug 28, 2012 8:25 pm

WOW! I just found the papers from the rewiring I did (only half way down in one of my TO DO piles). Unfortunately, everything I have also shows red to positive, black to negative.

Good luck tracking down the white!

Big D · Post by **Big D** » Tue Aug 28, 2012 9:48 pm

Unless changes have been made, black should always be the negative conductor unless of course we're talking newer apps that use yellow. Follow the white wire into the unit, chances are the first component it connects to will be the circuit protection device such as breaker or fuse typically indicating the positive side.

Allen Sr · Post by **Allen Sr** » Wed Aug 29, 2012 5:28 am

Maybe he is refering to the boats wiring color code black and white?

If that is the case I think the black is normally positive and white is ground/negative?

MUSICMAN7775 · Post by **MUSICMAN7775** » Wed Aug 29, 2012 6:43 am

THANKS EVERYONE FOR THE FEEDBACK. THE WIRES COMING OUT OF THE REFRIGERATOR ARE BLACK AND WHITE ON THE 12 VOLT SIDE, NO RED NO YELLOW AND OF COURSE NO INFO.
THE RESPONSE TO ME WAS FAST I APPRECIATE THAT.
THANKS AGAIN.
DON

MUSICMAN7775 · Post by **MUSICMAN7775** » Thu Aug 30, 2012 1:01 pm

i have found out that the black wire is without a doubt the positive lead.
