Also shared to the FB official group but figure I’d put here for posterity too…
F32 flybridge re-assembly instructions: Hadn’t seen these posted before so apologies if they have been, but I found this while rummaging thru the old docs in the original boat binder. Thought it might be useful for other F32 owners to have in their files and to just have documented somewhere. Also happy to send a pdf copy to anyone who wants. I don’t recall it being part of the manual Beacon Marine sells, otherwise I wouldn’t have shared publicly.
For now I’ve got it for download at
https://drive.google.com/file/d/1-Nzb-z ... Z--hFZ-XQ0

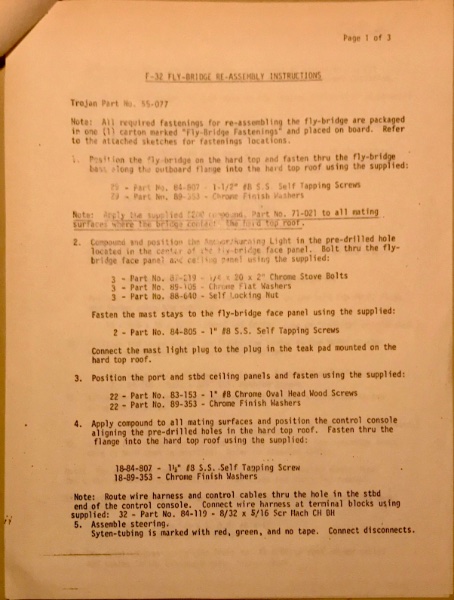

F32 Flybridge RE-assembly instructions
Moderators: BeaconMarineBob, Moderator, BeaconMarineDon
F32 Flybridge RE-assembly instructions
- Attachments
-
- 9BB5B4D0-BD86-48E3-9CF6-4C4D57196205.jpeg (97.4 KiB) Viewed 2276 times
-
- 738C464C-F748-4181-9DAC-7283970CF94A.jpeg (102.67 KiB) Viewed 2276 times
-
- E7BDA3A7-B145-400E-B62E-6EC816E65C45.jpeg (88.86 KiB) Viewed 2276 times
-
- B4C83831-2BF6-4D46-9FEF-96B72C0220C2.jpeg (50.65 KiB) Viewed 2276 times
Last edited by Mordaunt on Sun Mar 20, 2022 6:10 pm, edited 1 time in total.
1985 Trojan F32
-
prowlersfish
- 2025 Gold Support
- Posts: 12723
- Joined: Sat Nov 05, 2005 6:56 pm
- Location: Lower Chesapeake Bay ,Va
Re: F32 Flybridge RE-assembly instructions
Thank you for sharing . I very much would like to have a pfd copy. I will PM you my email.
Boating is good for the soul
77/78 TROJAN F36 Conv.
6BTA Cummins diesels
Life is to short for a ugly boat
