Wanted: Detailed pictures from carburator connection Merc233

Post by EM63 »

Hi folks, as I already wrote in this thread:

http://www.trojanboats.net/wforum/viewtopic.php?t=5141

we still desperately need some detailed pictures of this section of a Mercruiser 233 - Ford 351 Inboard engine
from a Trojan F32 Sedan Flybridge to rebuild the connection to the upper and lower helm.


Reason: when we've got the Boat, all upper parts of the engines were
missing and now it is very puzzeling to finish our works.

Pleas take your camera and shoot some big pic's from this area in original
and send it to me ( buffalo [at] shared-files.de )

In WWW you just find pictures fom separate engines :(
--
THANK YOU very much in advance - Heiner from Berlin
User avatar
EM63
Moderate User
Posts: 362
Joined: Sun Aug 28, 2011 3:37 pm
Location: Berlin-Wannsee, Germany

Post by EM63 »

OK guys - nobody answers :cry:

Could the missing part look like this bow ??


If yes - still needing pictures - Heiner (english language is still hard for me)
User avatar
prowlersfish
2025 Gold Support
2025 Gold Support
Posts: 12725
Joined: Sat Nov 05, 2005 6:56 pm
Location: Lower Chesapeake Bay ,Va

Post by prowlersfish »

Thats what it looks like . You should be able to make something up . The part in the photo bolts under the carb in some cases in others to the 2 rear cab studs . If you make one up use the rear carb studs . I wish I had a photo of the part off the engine but I don't sorry .
Boating is good for the soul
77/78 TROJAN F36 Conv.
6BTA Cummins diesels
Life is to short for a ugly boat :D
User avatar
EM63
Moderate User
Posts: 362
Joined: Sun Aug 28, 2011 3:37 pm
Location: Berlin-Wannsee, Germany

Post by EM63 »

Thanks Paul for your answer - looks I'm on the right way :D

I already found some schematicts (explosive drawings) also not connected as working case pictures :cry:

... so if anybody here will takes a heart to us - send some Pictures - please.

--
Greetings - Heiner from Berlin, Germany
rooferdave
Moderate User
Posts: 384
Joined: Tue Apr 06, 2010 9:24 am
Location: toronto canada

Post by rooferdave »

sorry I would like to help but I have mercruisers...
1976 Trojan 360 Flybridge needin a whole lotta luvin!
User avatar
prowlersfish
2025 Gold Support
2025 Gold Support
Posts: 12725
Joined: Sat Nov 05, 2005 6:56 pm
Location: Lower Chesapeake Bay ,Va

Post by prowlersfish »

rooferdave wrote:sorry I would like to help but I have mercruisers...
Thats what He has ( ford base ) the carb hook up should be the same on a chevy base
Boating is good for the soul
77/78 TROJAN F36 Conv.
6BTA Cummins diesels
Life is to short for a ugly boat :D
rooferdave
Moderate User
Posts: 384
Joined: Tue Apr 06, 2010 9:24 am
Location: toronto canada

Post by rooferdave »

"sigh" ok ok I guess I'm gonna have to force myself to go to my boat today for no other reason than to take pics for a fellow trojan owner (snicker)
1976 Trojan 360 Flybridge needin a whole lotta luvin!
Allen Sr
Active User
Posts: 1159
Joined: Fri Oct 15, 2010 6:37 am
Location: Baltimore,Md.

Post by Allen Sr »

rooferdave wrote:"sigh" ok ok I guess I'm gonna have to force myself to go to my boat today for no other reason than to take pics for a fellow trojan owner (snicker)
One excuse is as good as another, right? :lol: :lol: :lol:
Growing old is inevitable,but growing up is optional
1984 F36 w/350 Crusaders 'Reel Class'
2011 Trojan Rendevous
Solomons Get Together 2011
Ocean City 2012,2013,2015
User avatar
EM63
Moderate User
Posts: 362
Joined: Sun Aug 28, 2011 3:37 pm
Location: Berlin-Wannsee, Germany

Post by EM63 »

Do I have to worry about Dave :cry: :cry:
We lost him for hours - may be the fridge filled up with beer was in his way ???
rooferdave
Moderate User
Posts: 384
Joined: Tue Apr 06, 2010 9:24 am
Location: toronto canada

Post by rooferdave »

ok, after a horrible drive to my boat in Saturday traffic ( took almost 14 minutes) I parked and had a terrible thought... what if the beer fridge was malfuntioning??? I ran the 15 meters or so from my parking spot to my boat, rushed onboard and to my relief there were 15 tall cans of heineken all frosty and ready to drink, opened one and then my boat started sulking so I took her out with the family for a cruise to downtown Toronto and then back for photoshoot. had a few more beer and as I went for the camera a few dockmates asked if I needed assistance, well the beer ran out and we ended at the clubhouse were there was beer (and ceasers) well wife drove me home about midnight leaving my truck and camera at club. Went back today after recovery and I shall have pics up in about 30 mins :shock:
1976 Trojan 360 Flybridge needin a whole lotta luvin!
rooferdave
Moderate User
Posts: 384
Joined: Tue Apr 06, 2010 9:24 am
Location: toronto canada

Post by rooferdave »

ok here goes!
if thes pics don't help the last one is of my loader... you can borrow it to punish boats that will not play nice with their owners!
1976 Trojan 360 Flybridge needin a whole lotta luvin!
rooferdave
Moderate User
Posts: 384
Joined: Tue Apr 06, 2010 9:24 am
Location: toronto canada

Post by rooferdave »

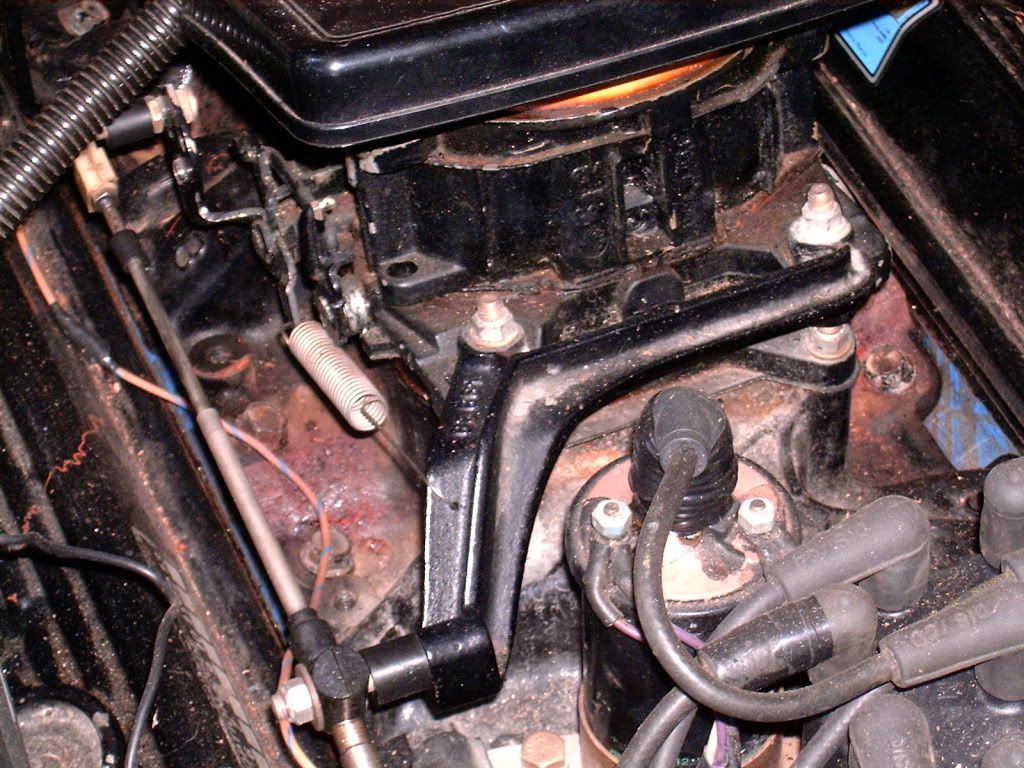

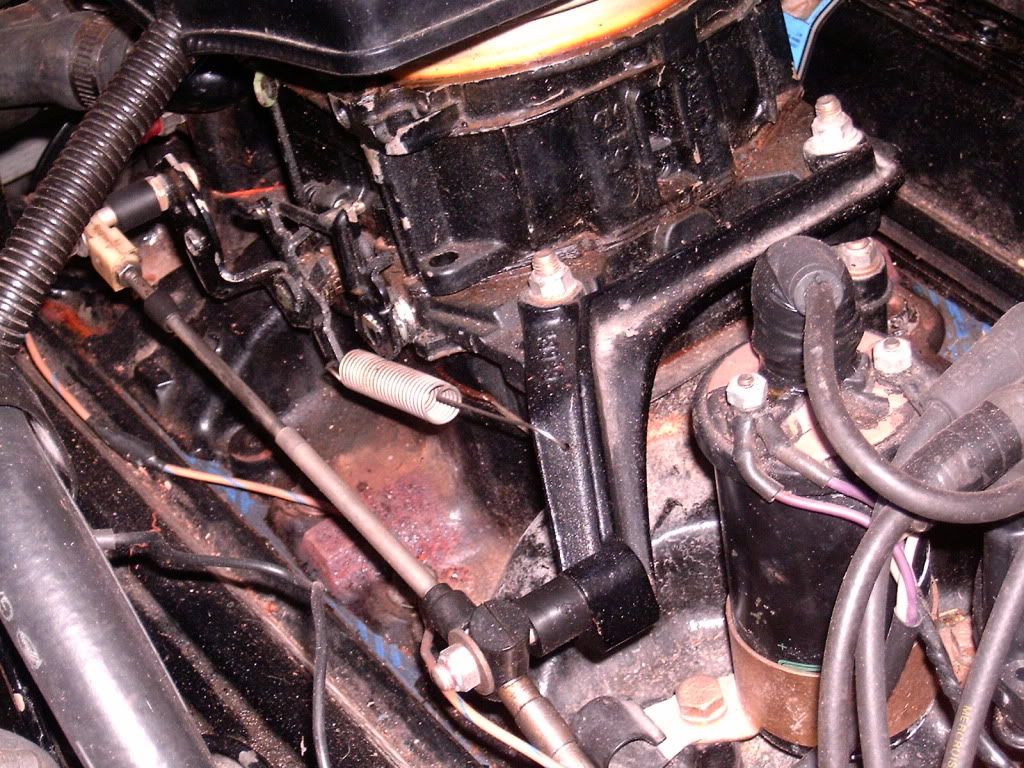

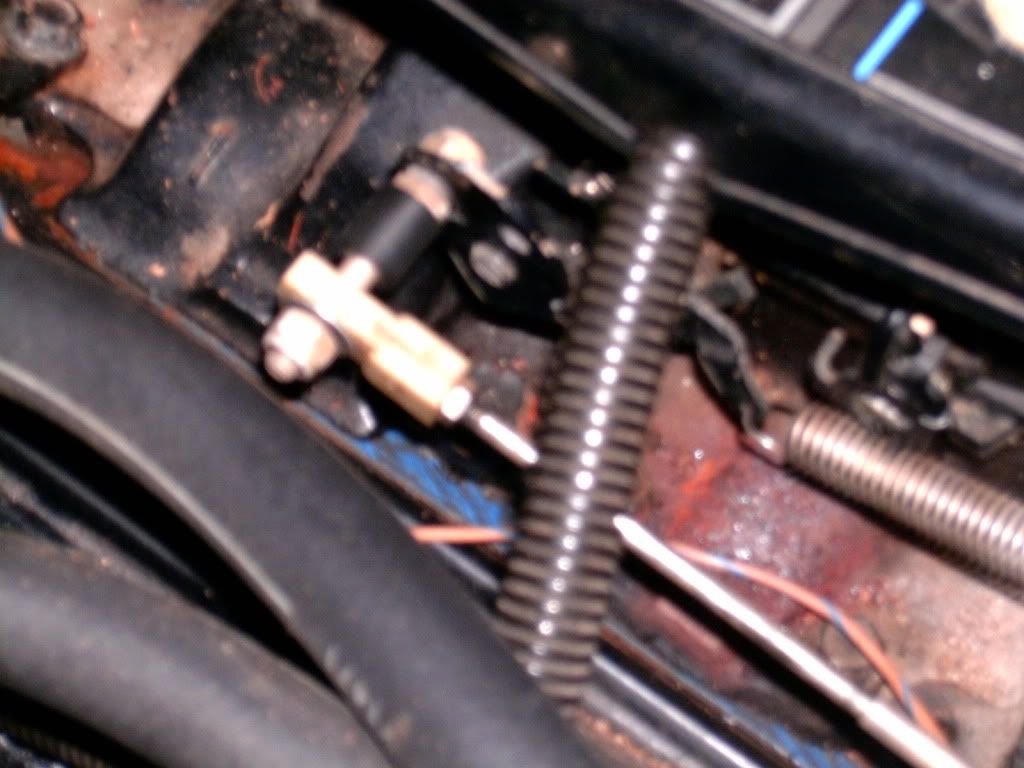

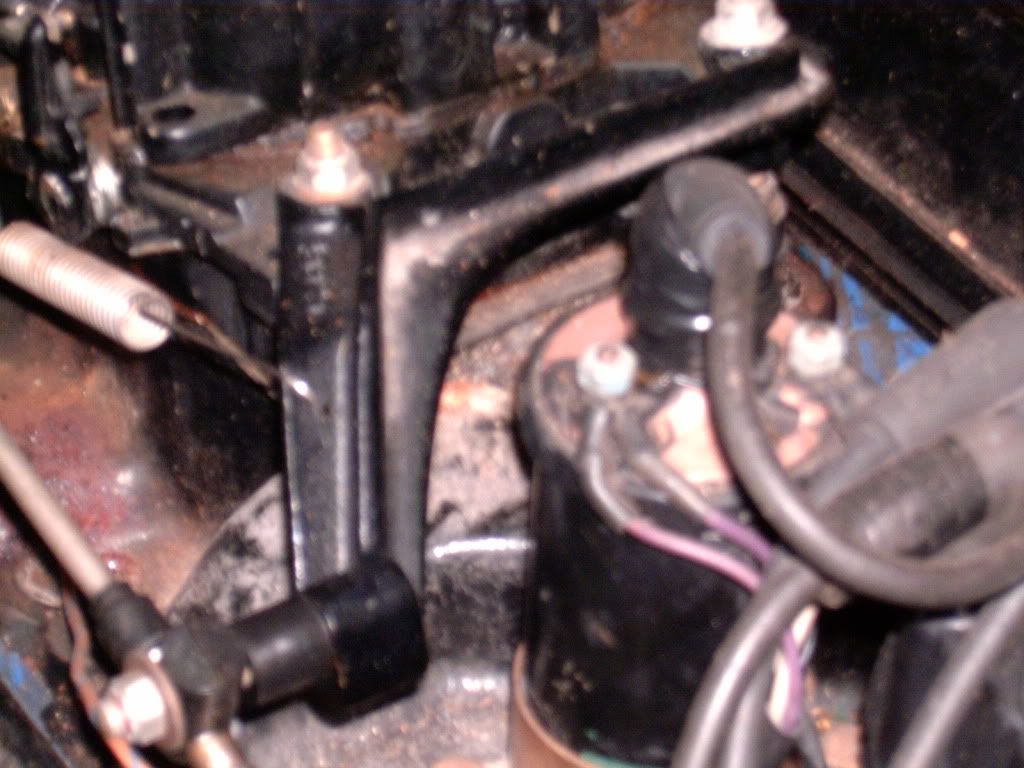

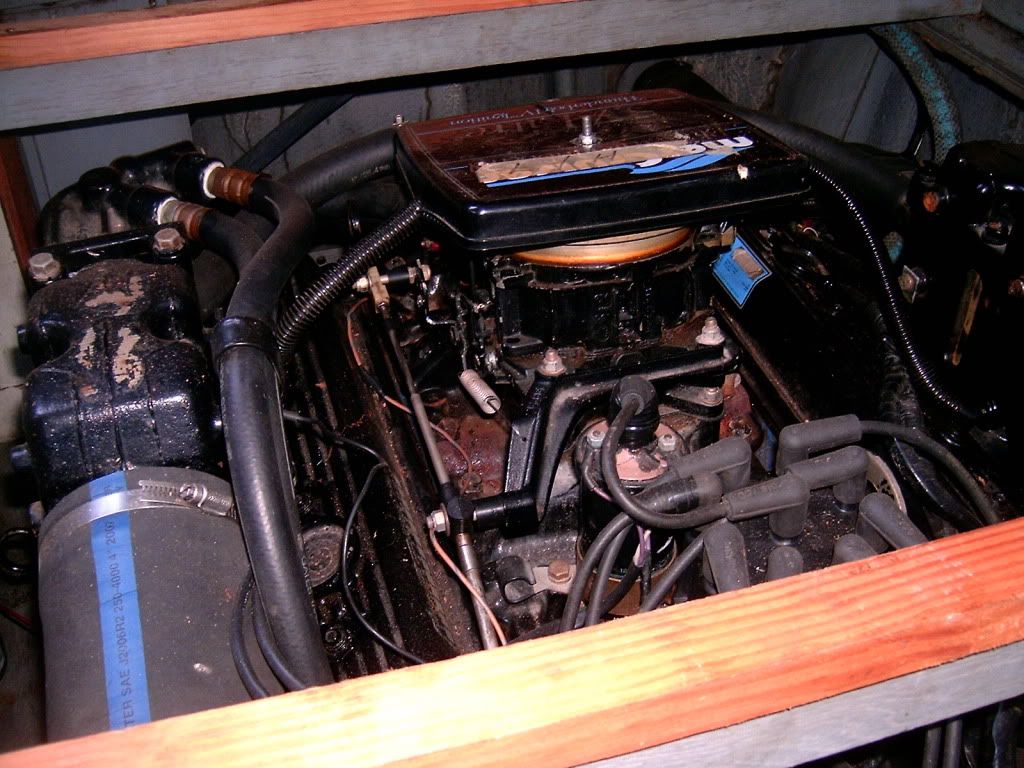

I thought should start far out and zoom in closer and closer, is this what you needed?
1976 Trojan 360 Flybridge needin a whole lotta luvin!
User avatar
EM63
Moderate User
Posts: 362
Joined: Sun Aug 28, 2011 3:37 pm
Location: Berlin-Wannsee, Germany

Post by EM63 »

DAVE - THAT's what I'm was looking for - GREAT :D :D :D :D :D

Thank you very, very much for theese pictures !!!! (and your family too, and your fridge)

Now I hope we wont' need your loader-beast to finish our works on her engines.
But I realize also, we have to order/organize theese original brackets.
No way to construct our own one's :roll:

As soon as possible I will keep you all informed about continuing of progress.


I'm proud to share this forum and all of your engagement :D
Love your feedback and humorous statements - Heiner from Berlin / Germany
User avatar
EM63
Moderate User
Posts: 362
Joined: Sun Aug 28, 2011 3:37 pm
Location: Berlin-Wannsee, Germany

Post by EM63 »

UPDATE: Today I found some paperworks about her secrets.

Hull-Number is: TRJ025220676/321
Engines have serial-Nr's: 65604 and 65603 MerCruiser.

We have got some brackets or hook up's - but unfortunately wrong one's :x

Nothing useable. First owners starting winterizing here and we still can't move her on her own power :(
--
Greetings - Heiner
larryeddington
Ultimate User
Posts: 1876
Joined: Mon Sep 28, 2009 5:08 pm
Location: Canton, TX Boat on TEXOMA

Post by larryeddington »

Get creative, someone designed and made the originals. Take some measurements, get a shop or person with a plasma torch and I bet it can be made. If you can't find one
Larry Eddington
1984 F-36 Tri Cabin "The Phoenix II"
1978 F-28 "The Phoenix"
Fish Master 2350 Bay Boat
9.5' Dink
