Hello!

Anyone make the switch? Making an off-season plan for steering to hydraulic and for the future adaption of auto pilot.

1973 F31 Fly bridge.

The 12 to 1, I believe refers to the hole Diameter. I also believe 12 to 1 is way overkill for a small hole like this. I would taper the hull a bit and grind some around the edges ( not as deep as your drawings ) fill and glass over. I have done this more than once without issues. Thanks and comple...

Hello, 1973 Trojan F31 Fly Bridge w/ Twin LM 318 Raw water cooled (But not too important for this post.) Pre-launch Hull inspection over the weekend found the marina blasted and chunked off the wood around of an old depth finder thru hall. I'm looking for feedback on the proposed repair method and a...

https://www.thehulltruth.com/boats-sale-wanted/622485-1985-trojan-10-meter-sedan-19900-a.html This is not the one im considering, but the photos match the layout of the one im considering.. I have a copy of the Trojan book with the schematics i will post after while. The above link states FG stringe...

Hello,

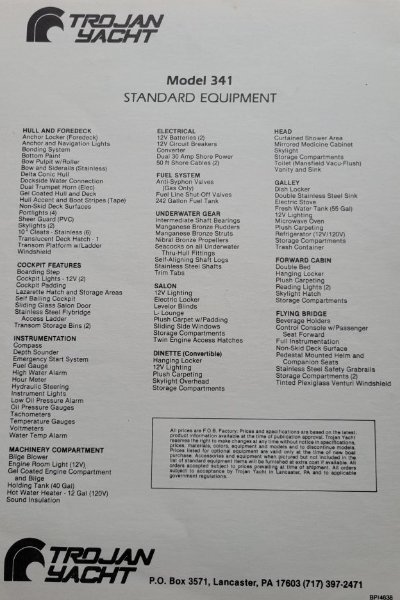

Looking at a 1985 10m Fly Model 341 with Mercs.

Who has or has had one? And anything specific about this model to look out for?

Thanks in advance!
Tim

Damper plate fixed the prop spin on my Port 318 with velvet drives. You can always start with an tranny oil change. Collect the old oil in a clear jar and inspect it after removal, (and settling..) If the oil change helps it could indicate a worn clutch plate.

That’s the way WAYWEGO. Exactly what I was thinking, but my guess is RPM is going to have to match since it comes off the coil..... ?

And yes senders beat the heck out of gauge prices!

Yes, Thanks for the (idiot) link! ! I swear I read that 3 times and wasn't until I typed out my post and was like wait a minute... Dis-similar gauges... From what I understand it seems like Faria uses a more universal sender than the Delcos? My guess is now that the PO replaced the helm gauges and s...

'73 F31 Fly Bridge. Helm gauges work fine. Any trouble shooting tips for Fly gauges? The RPM gauges register at idle, but do not increase properly on power... Ground issues? Connections are not new... I plan to crack open and closed all connections and see what happens from there. Battery and Oil p...

WINNER WINNER WINNER! Thanks Bob!!!

Confirms it was hooked up correctly, although it didnt seem to be logical, I think it makes sense now!

This is the config I have, and yes, Cam bolts all point outboard on their respective engines!! Thanks again!

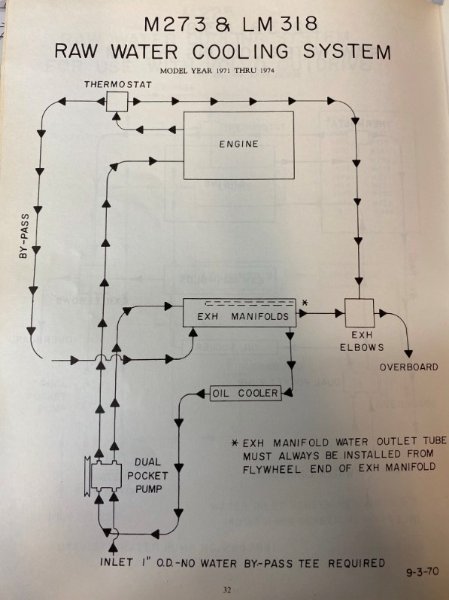

Okay.. Might be getting somewhere now... .Apparently I needed to look in older service manuals..... Anyone have a setup like this with the 4 finger Y splitting the Seacock inlet? Original pump setup.jpg Bob ya'll have any of these laying around? Fitting.jpg Now I really need to study the oil cooler ...

After much time trying to find the easy answer for 'proper' factory plumbing routing on my ' 73 F31 with dual Chrysler LM 318s, RWC , Velvet drive 1:1 trannys, its time to just 'figure it out' and ask for a second set of eyes, agreement or disagreement. Background: Boat new to me last year, still wo...

Here is a link for the common H20 Pump in a LM 318... Original Chrysler PN 2847631 I think... They should have info on a 360 pump. (If you cant see the PN on the pump, I've found the second link and their website handy to find PNs.) https://www.pumpvendor.com/Sherwood_D65_D-65_parts.html https://www...

Thanks!
