F-Boat - Running Gear

Page: 1

Strut with Bearing -- 787.28

New strut with cutlass bearing -- Comes with bolt package -- #TRJ13-057

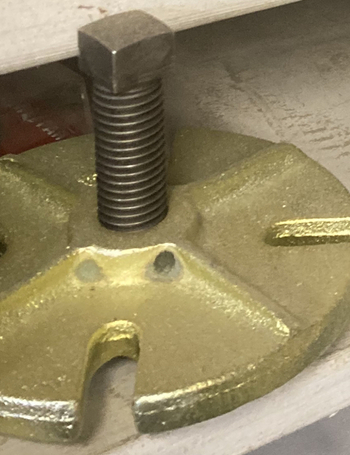

Transmission Coupling Puller -- 96.97

Transmission Coupling Puller -- 5" Coupler Flange Removal Tool - Marine Transmission Coupler Removal Tool. Fits most 4" & 5" couplers with a 4 bolt pattern -- 5" Overall Diameter

Trim Tab Cylinder Bracket -- 17.59

Trim Tab Cylinder Bracket
Cylinder Brackets are used on the top and bottom of each hydraulic cylinder. Comes as seen in picture. ** Four available **

Trim Tab Cylinder Pin -- 1.68

Trim Tab Cylinder Pins -- Nylon cylinder pin

Trim Tab Cylinders -- 279.26

Trojan Trim Tab Cylinders
$279.26 for the pair comes with hydraulic line ** Cylinders and hoses only ** (transom and tab brackets are sold separately)

Trim Tab Hose -- 5.64

Trim Tab Hose
Designed and manufactured exclusively for Trojan Boat Leveler. This trim tab hose is Rated at 2000 lb. burst pressure. Sold per foot -- Enter number of feet in Quantity

Trojan trim tab motor pump. This 12v motor pump can be used to replace the Trojan trim tab pumps in all single cylinder, 12v Insta-Trim systems. For use in both F-Boats or International. This pump unit comes with a housing, reservoir, motor, pump, solenoids and brass hose fittings and 2 stainless steel hose clamps (already assembled). This allows for easy installation

Trim Tab Seal Kit -- 33.60

Seal Kit for Trim Tab Cylinder -- Price: $33.60

Trim Tab Switch -- 168.00

Boat Leveler Tab Switch
Used ** Only ONE Available ** This switch is No Longer made/sold

Page: 2

Trim Tab Switch Plate -- 32.13

Trim Tab Switch Plate

H25 Helm Pump -- 450.71

H25 Helm Pump -- Working take out

Hynautic H25 -- 400.00

Hynautic H25
Used on F-36, 11 meter and 12 meter -- Working take out -- We also have new ones for pricing on new call 609-713-4602

Hynautic Helm Pump Kit - (H50) -- 70.38

Hynautic Helm Pump Kit for H-50
If you are not sure which helm pump you have please call before ordering - 609-713-4602

Hynautic Seal Kit - (H20) -- 71.32

Hynautic Seal Kit - H-20 3/4" shaft for 1979 and newer H-20 Hynautic Helm

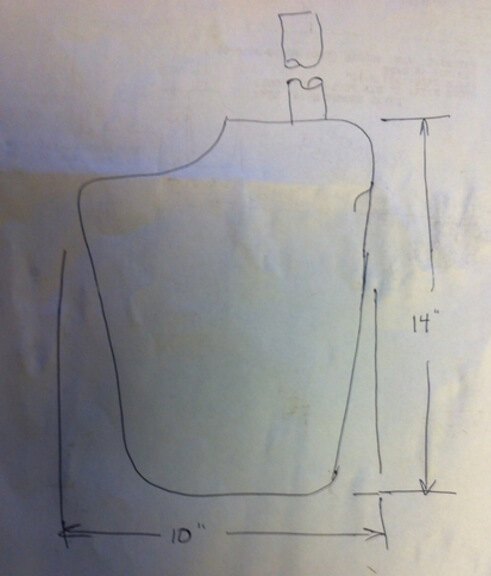

Rudder - (F32)

Rudder for F-32
F-32 rudder fits all F-32 - all years - all models 320, 321, 322, 323 - Call for pricing.

- Another image -

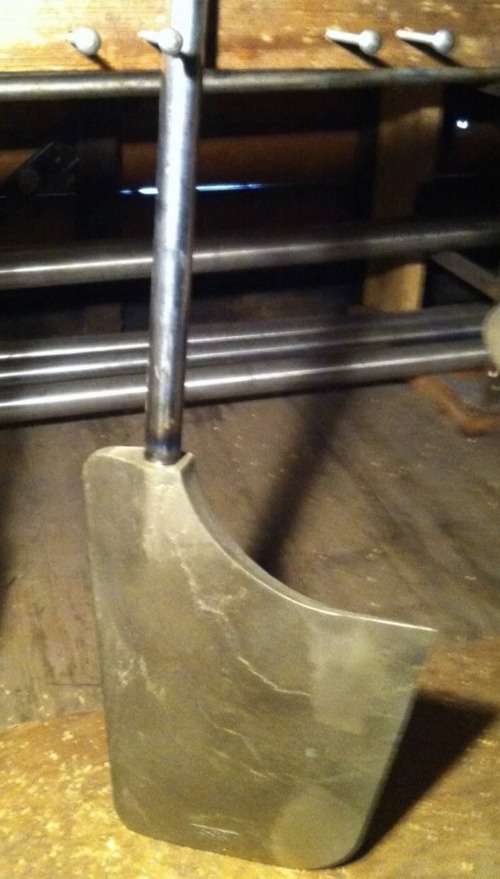

Rudder - (F36)

Rudder for F-36 -- Price $2324.36 plus Shipping and Handling charges ** Have TWO Only **

Rudder Backing Plate -- 85.78

Rudder Backing Plate
For early wood boats 36'-44' and F-boats 36'-54' (1970 - 1978) ** Only ONE Available **

Rudder Port - (1979-92) -- 782.54

Rudder Port
1979 - 1992 F-36 // Tri-Cabin // Tri-Fly (Rudder Port) ** Only ONE available **

Rudder Port - (F32) -- 643.21

Rudder Port (F-32 All Models)
Comes with backing plate and packed ready to install.

Page: 3

Rudder Port - (F36) -- 784.25

External mount rudder port - Older F-36 TriCabin and Sedan. With backing plate and mounting bolts - also includes packing

Rudder Port Flange -- 783.09

Rudder Port Flange - Internal (1965-1978)
This Rudder Port was used on early wood 36'-44' and F boats F-36 - 54’ Motor Yachts ** Only ONE Available **

Packing Box Hose -- 26.64

Packing Box Hose
2 1/4 inside diameter - 4 5/8 Long

Shaft Log Hose -- 25.35

Shaft log hose for all one inch shafts
F -25, F-26, F-27, F-28, F-30 - 6" long - Inside diameter - 2" ** Only TWO available **

Shaft Packing Extractor -- 14.49

Packing extractor

Trojan Rudder Port Packing -- 30.15

Trojan Rudder Port Packing -- Packing for Trojan Rudder Ports -- $30.15 per rudder port -- Cut to size -- Please indicate at check out which model Trojan you have. For example F-32, 321, etc. If you are unsure, please call to order -- 609-713-4602

Trojan Shaft Packing -- 29.10

Trojan Shaft Packing
Packing for Trojan shafts -- $29.10 per shaft -- Cut to size -- Please indicate at check out which model Trojan you have. For example F-32, 321, etc. If you are unsure, please call to order -- 609-713-4602

4" Exhaust - Port

4" Exhaust - Port
Fiberglass tip -- This is a *Used* part // Good condition

4" Exhaust - Starboard -- 186.71

4" Exhaust - Starboard
Fiberglass tip -- This is a *Used* part // Good condition

Coupling (Steering Box to Pipe) -- 76.50

Coupling (Steering Box to Pipe) **Only ONE Available**

Page: 4

Cutlass Bearing -- 98.25

Cutlass Bearing for F-26, F-25 Sea Raiders with one inch shafts. This Trojan Cutlass bearing will fit most Trojan F Boats and earlier Trojans with one inch shaft. Questions about your application please give us a call

Cutlass Bearing - F32 -- 104.32

Cutlass Bearing -- For all Trojan F32

F36 Cutlass Bearing -- 138.03

F36 Cutlass Bearing -- F-36 Sedan all years with gas engines

K18 Hydraulic Cylinder - F32 -- 549.00

K18 Hydraulic Cylinder - F32
No longer made ** Have 2 new **

Shaft Split Coupling -- 149.31

Trojan Shaft Split coupling 5"
4 bolt -- 1.25" bore for Borg Warner transmission ** Only TWO Available **

Steering Gear - Saginaw -- 350.00

Steering Gear - Saginaw
** Only ONE Available **

Steering Relief Valve -- 199.56

Steering Relief Valve -- MVS21

Tiller Arm -- 284.69

Tiller arm - Bronze

TriCabin Cutlass Bearing -- 139.10

TriCabin Cutlass Bearing -- TriCabin models 360 - 365 straight drive

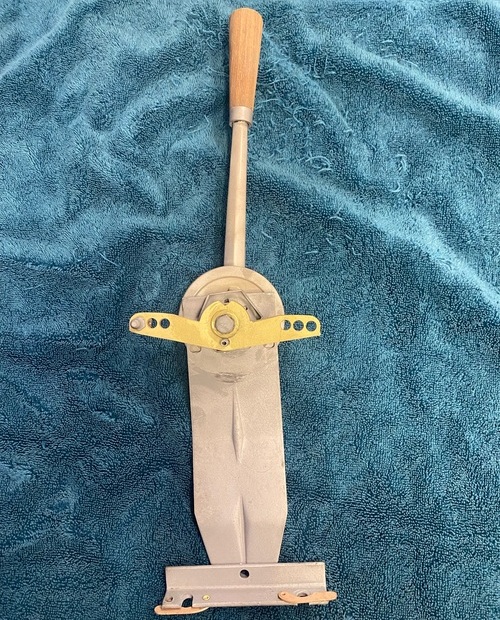

Trojan Shift Control (Used) -- 125.00

Trojan Shift Control (Used) -- Marmac -- Only TWO Available

Page: 5

Strut - F32 Reconditioned -- 859.79

Strut - F32 Reconditioned -- F-32 Model 321 (all years) -- Comes with new Cutlass bearing and bolt package -- Only ONE Available

Ball Joint - Plane End

Ball Joint - Pane end
Used on all F boats with mechanical steering and on some hydraulic steering. Call for pricing with year of Trojan and Model# or Hull#.
